Fundus Camera
Bosch Fundus camera

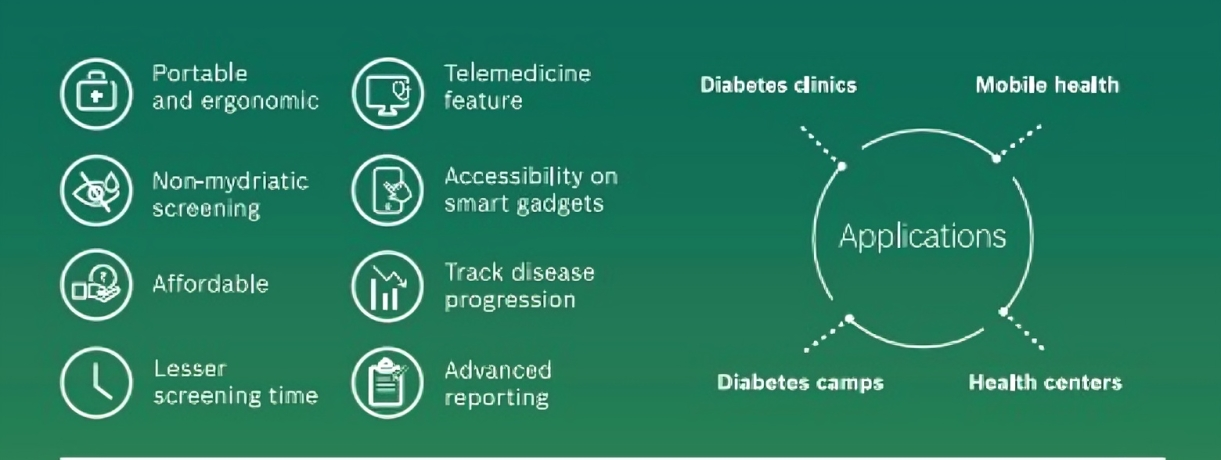

Non-Mydriatic Imaging
Imaging without dilation of the pupil, leading to lesser screening time.
Portability
Hand held and light weight, making applications across various contexts and locations possible.
- Handy Fundus camera HIGH-QUALITY DIGITAL FUNDUS IMAGING, Retinal Imaging – Mydriatic & Non – Mydriatic. The attachable retinal module enables non-mydriatic eye fundus examination with a 40 degree wide field of view. With the digital and video captures, the eye fundus can be visualized for retinal anatomical & pathological changes. This Fundus camera can be both taken to the field for last-mile care delivery and mounted on a slit lamp holder with a special adapter to give additional stability to imaging in clinical set-up.
RETINAL MODULE SMARTSCOPE EY4
Smart scope PRO with optics module EY4 enables non-mydriatic eye fundus examination through undiluted pupil, and allows acquisition of images during screening for diabetes and other vision-threatening diseases, such as glaucoma and AMD. Low flash exposure minimizes the patient discomfort. With the Slit Lamp Adapter the camera can be fitted to any Slit Lamp with patient head rest to bring more stationary setup at the doctor’s office.
Features
- Non mydriatic, Handheld, Portable Fundus camera.
- 5MP CMOS sensor with posterior module to capture image & video.
- 40 degree FOV.
- 3 capture settings – Manual (-20D to +20D), Auto, Autofocus assist.
- LED Flash light.
- 8GB Memory card – Stores up to 2000 patient data.
- Rechargeable battery – 45 mins charging time.
- Red, Low red, Red free, Infrared images can be captured in single click.
- Lightweight 440gms.
- Dual purpose cradle to charge battery and as camera stand.
- USB cable to transfer images to computer.
- Suitable for camps, screening in diabetic clinics, home care screening.
- 1 year warranty.
